Video Demonstration
Motion / Motor Control with Interpolation
Motion control IC

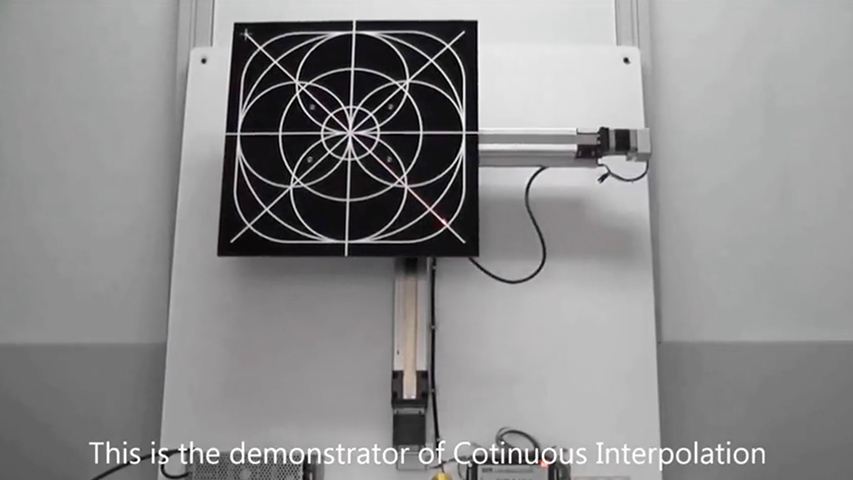

interpolation function demonstration
NOVA Electronics z
MCX514 Helical Interpolation Demonstration
NOVA Electronics
MD5230D XY
Stage
Demo
MCX500 series, positioning function demonstration
NOVA Electronics
MCX500 Series, stepless speed change demonstration
NOVA Electronics
Video Demonstration
for
MCX500 series
products
Motion / Motor Control IC
MCX500 series
| MCX501 | MCX512new | MCX514new | |
|---|---|---|---|
 |
 |
 |
|
| Number of control axes | 1-axis | 2-axis | 4-axis |
| Circular/linear interpolation function （operator） |
- | ●(32bit) |
●(32bit) |
| multi-chip interpolation function |
- | ●(32bit) |
●(32bit) |
| Multi-chip interpolation function |
- | ● | ● |
| Speed range free function | ● | ● | ● |
| Drive Maximum Speed （CLK=16MHz） |
8Mpps | 8Mpps | 8Mpps |
| Supply voltage | 3.3V±10% | 3.3V±10% | 3.3V±10% |
| Product Introduction | in the pipeline | PDF(简体字) | |
| User Manual | PDF(简体字) | in the pipeline | PDF PDF(繁体字) |
MCX300 series
| MCX302 | MCX304 | MCX312 | MCX314As | MCX314AL | |
|---|---|---|---|---|---|
 |
 |
 |
 |
 |
|
| Number of control axes | 2-axis | 4-axis | 2-axis | 4-axis | 4-axis |
| Circular/linear interpolation function （operator） |
- | - | ●(24bit) |
●(32bit) |
●(32bit) |
| Drive Maximum Speed （CLK=16MHz） |
4Mpps | 4Mpps | 4Mpps | 4Mpps | 4Mpps |
| Supply voltage | 5V±5% | 5V±5% | 5V±5% | 5V±5% | 3.3V±10% |
| Product Introduction | |||||
| User Manual | PDFPDF(繁体字) | PDFPDF(繁体字) |
IC Evaluation Module
Motion Control IC
| MCX501EV | MCX514EV | MCX302EV | MCX304EV | MCX312EV | MCX314AsEV | MCX314ALEV |
|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
| MCX501 | MCX514 | MCX302 | MCX304 | MCX312 评估模块 |
MCX314As 评估模块 |
MCX314AL 评估模块 |
Motion / Motor Control Board
PCI bus
| MC8541Pnew | MC8581Pnew | MC8043P | MC8082P | MC8042P | MC8022P | |
|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
|
| Number of control axes | 4-axis | 8-axis | 4-axis | 8-axis | 4-axis | 2-axis |
| Circular/linear interpolation function | ● |
● |
● |
- | - | - |
| Multi-chip interpolation function | ● |
● |
- | - | - | - |
| Multi-chip interpolation function | ● | - | - | - | - | - |
| Drive output speed range | 1pps～8Mpps | 1pps～4Mpps | ||||
| Product Introduction | PDF PDF(中文) |
PDF PDF(中文) |
- | - | ||
| User Manual | PDF |
|||||
PCI-Express Bus

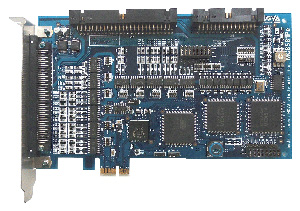

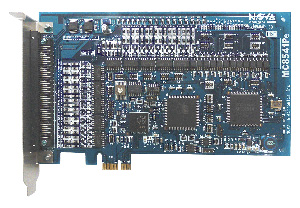

| MC8541Pe | MC8581Pe | MC8043Pe | MC8082Pe | |
|---|---|---|---|---|
 |
 |
 |
 |
|
| Number of control axes | 4-axis | 8-axis | 4-axis | 8-axis |
| Circular/linear interpolation function | - | - | ● |
- |
| Drive output speed range | 1pps～8Mpps | 1pps～8Mpps | 1pps～4Mpps | 1pps～4Mpps |
| Product Introduction | - | - | ||
| User Manual | PDF(中文) | PDF(中文) |
USB／LAN support
| MR540 | MR580 | |
|---|---|---|
 |
 |
|
| Number of control axes | 4-axis | 8-axis |
| Circular/linear interpolation function | ● |
● |
| Drive output speed range | 1pps～4Mpps | |
| User Manual | in the pipeline | in the pipeline |
Motion / Motor Control Unit
| MR210AU | MR220AU | ||
|---|---|---|---|
 |
 |
||
| Number of control axes | 1-axis | 2-axis | |
| Corresponding interface | USB | ● | ● |
| RS232C | ● | ● | |
| parallelI/F | ● | ● | |
| Drive output speed range | 1PPS～4MPPS | ||
| Number of program logins | Axes 64 | ||
| Action Mode | Home | ● | ● |
| scanning driver | ● | ● | |
| continuous drive | ● | ● | |
| Indexing drive（Index） | ● | ● | |
| program driven | ● | ● | |
| Input Power | DC24V | ||
| User Manual | |||
| Serial Command Instructions | |||
Intelligent motion drive
Drive All-in-One Motion Controller
| MD5130D | MD5230D NEW | |
|---|---|---|
 |
 |
|
| Number of control axes | 1-axis | 2-axis |
| Corresponding interface | USB | USB |
| Drive motor type | 5-phase stepper motor | 5-phase stepper motor |
| Motor drive current | 0.35A～1.4A / phase | 0.35A～1.4A / phase |
| Microstep division number | Maximum 250 divisions | Maximum 250 divisions |
| Number of program logins | 1000 steps | 1000 steps |
| Supply voltage | DC24V | DC24V |
| Product Introduction | PDFPDF(中文) | PDFPDF(中文) |
| User Manual | ||
| Communication Instructions |
